Description

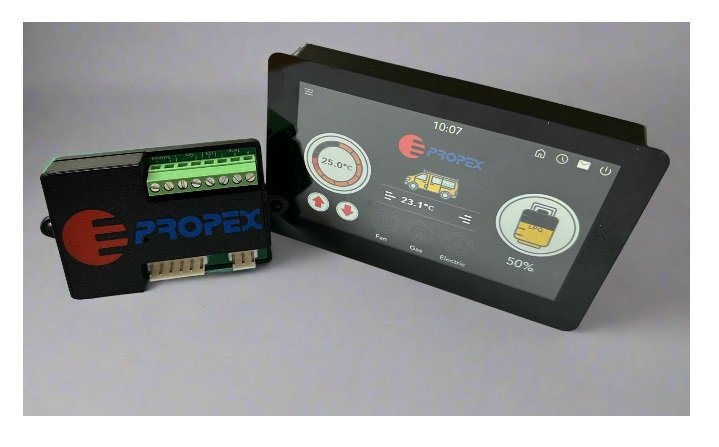

Keep all your heater and tank controls in one place with this super neat control panel, With 1GHz quad-core 64-bit ARM Cortex-A53 processor, 512MB of SDRAM, 2.4GHz 802.11 b/g/n wireless LAN, all packaged to allow the bringing together of your Propex air heater and Gastore LPG tank controls into one simple and intuitive touch screen command centre.

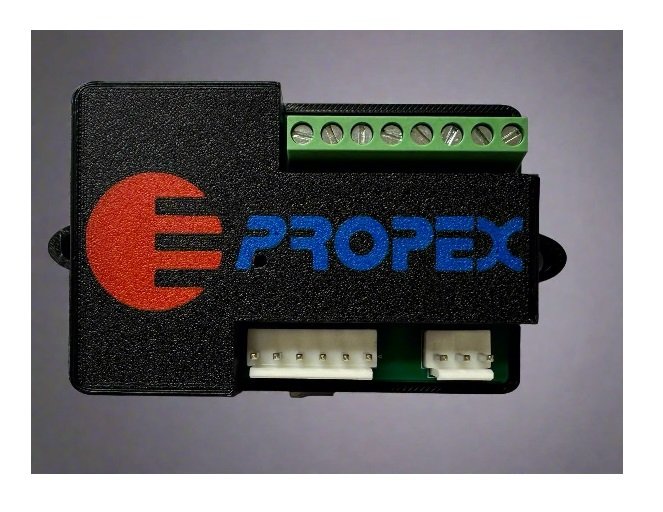

Using Bluetooth connectivity, the head unit just requires a 12v DC feed leaving wire free connection to the remote interface board for your heater and LPG tank.  Simple plug and play means standard Propex interface cables are retained
- 5″ high resolution captive touch display
- Bluetooth Connectivity
- Gas Levels and solenoid control
- Full compatibility with Heatsource range
- Auto gas modes for added safety
- Auto electric for comfort. (3c+ away from target – High, 3-1.5c from target – Medium, 1.5 or less – Low)
- Enhanced error messages
- 7 Day Schedule
- Timer for delayed off
- Wifi and Over the air updates
- Plug & Play installation
- Easy upgrade to an existing heater.
This Panel will work with the complete Heatsource range including the HS2000 gas heaters, the HS2800 and HS2211 underfloor mounted units, plus the HS2000e and HS2212 gas and mains electric heaters.  Integrated control for the Gastore LPG gas supply allows for activation of the tanks onboard electronic solenoid whilst displaying the liquid gas levels. inbuilt current controller also reduces draw on the battery whilst holding the LPG tank solenoid open
Remote temperature sensor allows the panel to be mounted in a convenient place to suit your vans layout whilst the reading of your internal temperatures can be placed in the most advantageous place for maximum accuracy and user comfort.
Extended features within the panel allows for 7 day multiple programmable timers to be set allowing you to return to a warm and toasty van after your latest outdoor adventure.
A unique feature for the ‘Mains Electric’ heaters is an intelligent temperature control allowing the selected heat output to be reduced as it nears the ‘cut off’ setting, or stepped up as external temperatures drop, This maximises user comfort and experience.
Should the heater ever fault out then full instructions are displayed to advise the cause of the issue plus a QR code linking back to Propex support giving in-depth instruction and troubleshooting tips to get you back up and running as quickly as possible.
An additional layer of safety has been built in that allows the user to specify the LPG gas supply be automatically isolated in the instance of a heater problem
